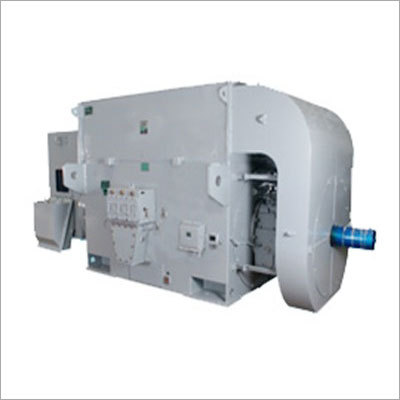

High Voltage Motors Mega Pack Closed Type Wound

High Voltage Motors Mega Pack Closed Type Wound
High Voltage Motors Mega Pack Closed Type Wound
Product Code : ADENGG-01
Brand Name : ADENGG
Product Description

High Voltage Motors Mega Pack Closed Type Wound

As a quality conscious wholesaler and distributor, we are engaged in offering premium quality AC motors like High Voltage Motors Mega Pack Closed Type Wound in the market. Equipped with terminal box, shaft and lubrication system, these High Voltage Motors Mega Pack Closed Type Wound are notable for their excellent insulation properties and necessary safety features. In order to remain ahead of the competition, we put emphasis on proper quality checking of these specially developed motors on the basis of their performance level, energy consumption rate, operating mode and shelf life before offering these to customers.

Technical Specifications :

Ambient Temperature

-10 to +50oC

Altitude

Not exceeding 1000 m above mean sea level

Atmosphere

Non corrosive & non hazardous

Relative Humidity

Up to 100%

Voltage

415V, 690V, 6.6 kV, 3.3 kV, 11 kV +/- 10%

Frequency

50 Hz +/- 5%

Combined Variation

+/-10%

Duty

S1 (continuous)

Service Factor

1.0

Details Description :

Features

Values/ Standards

Protection

IP 55

Type of cooling

IC 611/ 81W

Class of Insulation

F / H

Terminal Box position

LHS from NDE

Bearing

Roller Bearings at NDE, Ball bearings at DE

Lubrication

Grease

Mounting

IM 1001, IM 3011, IM 2001, IM 3001

Accessories

ACH, 6 x simplex RTD, 2 x Duplex RTD type BTD

Frame sizes

355 frame to 710 frame

Shaft Extension

Single cylindrical extension as per IS:1231

Connection

Star
