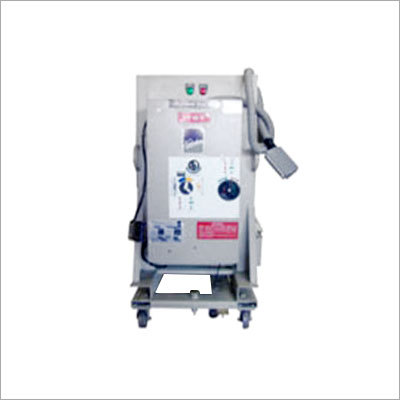

SF6 Circuit Breaker

SF6 Circuit Breaker
SF6 Circuit Breaker
Product Code : ADENGG-06
Brand Name : ADITI ENGINEERING
Product Description

SF6 Circuit Breaker

Aditi Engineering is authorized dealer of Kirloskar products which has SF6 Circuit Breaker with features include advance warning of gas leak by continuous pressure monitoring and Automatic safety shutters to cover live parts when CB is withdrawn.

Detailed Description

Features

  • Even in the event of a complete gas leak, our SF6 CBs are capable of breaking 100% normal current & with stand system voltage
  • Advance warning of gas leak by continuous pressure monitoring
  • Explosion proof and fail-safe CB by means of safety membrane for each pole
  • Automatic safety shutters to cover live parts when CB is withdrawn
  • No degradation of main current carrying contacts, as there are separate currents carrying and arcing contacts
  • Our SF6 CBs operate at low pressure. The internal pressure rise at the instant of current interruption also stays low. Due to this, and the high degree of gas tightness, adequate for entire life of the breaker is ensured.

Technical Specification :

Rated Voltage

12 kv

Insulation Level

28 / 75 kVrms / kVp

Rated Current

1250 A

Braking Capacity

26.2 kA

Making Capacity

65.5 kAp

Short Time Current

26.2 kA

Operating Sequence

O - 0.3 Sec - CO - 3 min - CO

Auxiliary Switch Contacts

8NO + 8NC

Spring Charging Motor Power

250 W

Closing / Tripping Coil Power

80 V
