TINY Mini Family

TINY Mini Family
TINY Mini Family
Product Code : tiny
Brand Name : Kirloskar
Product Description

Overview:-

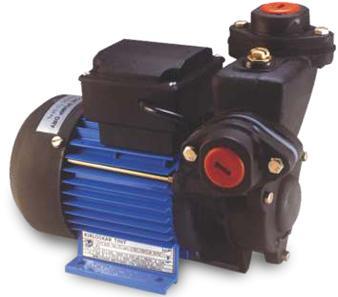

These pumps are designed with aluminium extruded motor body for better heat dissipation and corrosion resistance. Double shielded ball bearing ensures no external lubrication. Impeller is of high tensile brass and delivery casing is of cast iron. These are used in bungalows, hospitals, small fountains and so on. This small sized pump fits in even in tight places. It is made of high quality materials for better performance and longer life.

Features:-

  • Aluminum extruded motor body for better heat dissipation and corrosion resistance
  • Motor can withstand wide voltage fluctuation from 180 - 240 Volts
  • Capable of priming up to 3 meters static suction lift without foot valve, at rated head and discharge (IS 8472:1998)
  • Fitted with Thermal Overload Protector (TOP) preventing motor burn out at lower voltage
  • Totally enclosed fan cooled (TEFC) - no entry of dust moisture
  • Capacitor starts and runs motor with IP-44 protection
  • ‘B’ class of insulation
  • Capacitor inside terminal box
  • Double shielded ball bearing - needs no external lubrication

Applications:-

  • Water supply for domestic use in Bungalows, Hospitals, Garages, Industries, Small
  • Fountains, Solar Heating Systems etc

Specifications:-

Technical Specifications
  • Head : 3 to15 meters
  • Capacity : 1600 to 600 LPH
  • Power Rating : 0.18 Kw (0.25 HP)
  • Voltage Range : 180 to 240 Volts
Material of Construction
  • Impeller : High Tensile Brass
  • Delivery Casing : Cast Iron
  • Mounting Casing : Cast Iron
  • Motor Body : Aluminum.
  • Shaft : Carbon Steel (Chrome Plated)
