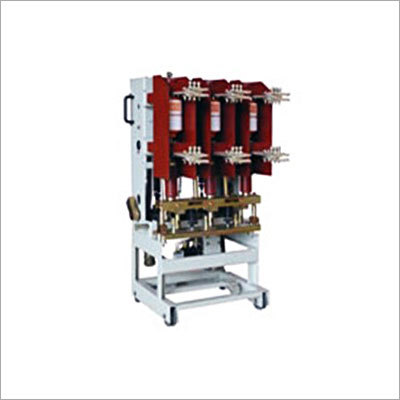

Vacuum Circuit Breaker

Vacuum Circuit Breaker
Vacuum Circuit Breaker
Product Code : ADENGG-11
Brand Name : Kirloskar
Product Description

Vacuum Circuit Breaker

Aditi Engineering is authorized dealer of Kirloskar products which has Vacuum Circuit Breaker with features include maintenance free design, horizontal draw out and isolation, CB can operate in test and positive racking mechanism.

Specifications
Brand: Kirloskar Electric Company Ltd
Model No: VRK 24
Type :
22kV
Rated Voltage :
24 kV
Insulation Level :
50 / 125
Rated Current :
1600 A
Braking Capacity :
40 kA
Making Capacity :
100 kAp
Short Time Current :
40 kA
Operating Sequence :
O - 0.3 Sec - CO - 3 min - CO
Auxiliary Switch Contacts :
8NO + 8NC
Spring Charging Motor Power :
250 W
Detailed Description

Features:

  • Maintenance free design
  • Horizontal draw out and isolation
  • Positive racking mechanism
  • Interlocks to prevent insertion/withdrawal of closed CB
  • CB can operate in test or service position only
  • Identically rated CBs are fully interchangeable
  • Easy retro fitting with cassette system
  • Fully type tested as per IEC60056/IS 13118/IEC 62271-100
